Product drawings consist of many drawings and are generally stored in multi-page PDF files. When the design of the drawing is changed, it will be a lot of work to compare all the drawings of the old and new drawings and mark the change accurately. This HP explains PloCVAuto, which automatically compares a large number of drawings contained in two new and old multi-page files.
This HP has simplified the contents for mobile. Please refer to the following HP on a PC for detailed functions of this product, downloading, ordering method, etc.
https://www.isoplotec.co.jp/eplocvauto.htm
* Drawing comparison of printed wiring board
* Schematic drawing comparison
* Drawing comparison of mechanical drawings
Multi-page files in the following formats are automatically converted for drawing comparison and continuous conversion.
Input : PDF, TIFF, SXF (p21, sfc), HPGL
Output: PDF, TIFF, SXF (p21, sfc), HPGL
When you press the "Standby output" button of PloCVAuto, it will
monitor until the old and new multi-page drawing files enter the new and
old folders respectively. Once the files are in, the drawings are overlaid
with different colors for each page, the drawings are compared, changed
area marks are added, and a multi-page file of the specified file type
is output to the output folder.
The old and new input files are deleted when the output is complete.
Flow of automatic drawing comparison of multi-page files
Personal computer with Intel compatible CPU
* Free memory: 3GB or more
* Free hard disk space: 10GB or more
* Screen resolution: 1024 x 768 dots or higher
* OS: Windows7, 8, 10, 11 32Bit, 64Bit
* The following software must be licensed and installed.
PloCVAuto Ver.12.00
PloCompAuto Ver.11.01 or higher
PloComp Ver.11.01 or higher with PloCompAuto
PloView Ver.11.01 or higher with PloViewAuto
PloCVAuto main screen
PloCVAuto setting screen

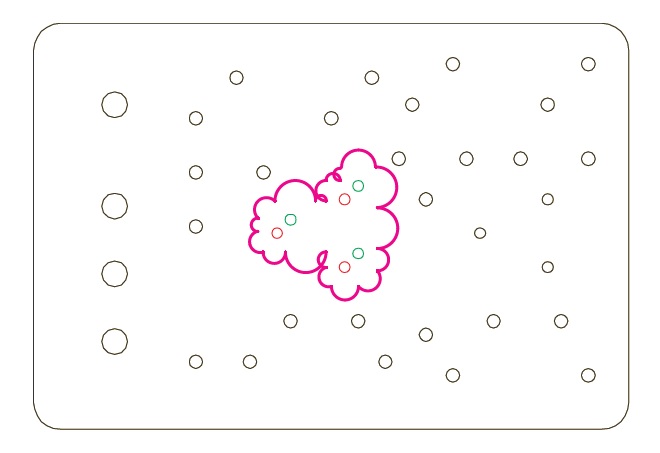

Output example Page-1

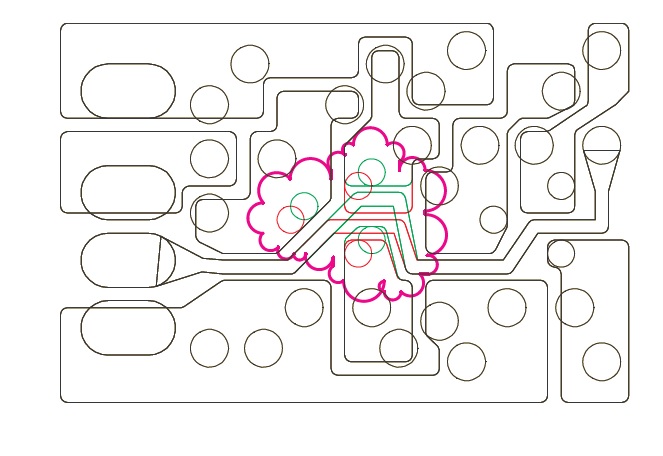

Output example Page-2

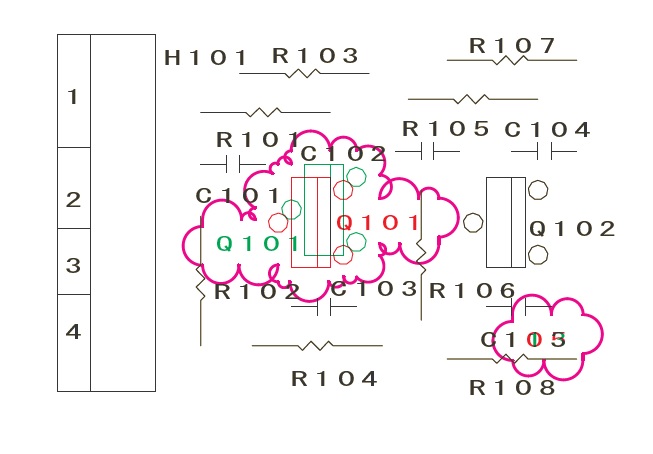

Output example Page-3
PloCVAuto Free
PloCompAuto 950 US$/license
PloViewAuto 950 US$/license
You can try all features for free for 30 days.
